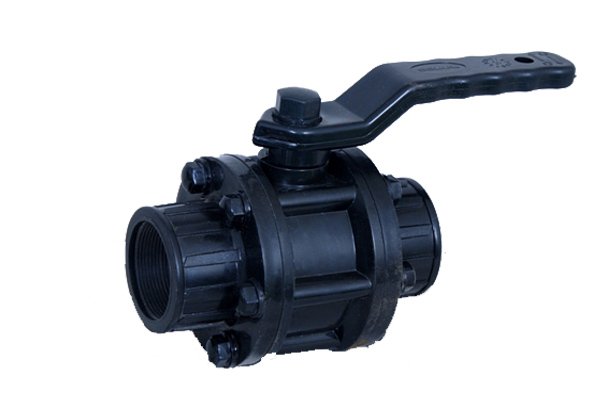

PP Screw End Valve Manufacturer in Ahmedabad
| TECHNICAL SPECIFICATION | |
| Material Of Construction | PP (Polypropylene) PVDF(Polyvinylidene fluoride) |
| Design | 3 piece design |
| Maximum working temp | 80 c (consistently) |
| Connection End | Screw end (BSP thread) |
| Construction | 3 piece design, 1 piece stem (spindle), full bore, Teflon seated |
| Hydraulic Test Pressure | Body-150 PSI & SEAT-100 PSI |
| Size Range | ½”- 15MM TO 100MM – 4” |
| Standard | As per manufactuer’s |
| MATERIAL SPECIFICATION | |||
| No. | DESCRIPTION | QTY. | MATERIAL |
| 1 | Side Piece /Flanged end | 2 | Polypropylene |
| 2 | Body | 1 | Polypropylene |
| 3 | Ball | 1 | Polypropylene |
| 4 | Stem/Spindal | 1 | PP With M.S. /S.S |
| 5 | Seat Ring | 2 | PTFE (TEFLON |
| 6 | Body”O”Ring | 2 | Noeprene |
| 7 | Stem Seal Ring | 1 | PTFE (TEFLON |
| 8 | Stem “O” Ring | 1 | Neoprene |
| 9 | Stud, Nut & Washer | REQ | M.S. Zinc Plated/S.S |
| 10 | Nut Cap | REQ | Polypropylene. |
| 11 | Handle | 1 | M.S. PP Coated. |
| 12 | Handle Hex. Pin | 1 | M.S./ S.S. |
| 13 | Handle Cap | 1 | Polypropylene. |
| SIZE SPECIFICATION | |||||
| Size | L | OD | ID | H1 | |
| In. | mm | ||||
| 1/2″ | 15 mm | 115 | 30 | 13.5 | 130 |
| 3/4″ | 20 mm | 126 | 35 | 19 | 131 |
| 1″ | 25 mm | 123 | 45 | 24.5 | 165 |
| 1 1/2″ | 40 mm | 154 | 65 | 38 | 197 |
| 2″ | 50 mm | 178 | 76 | 50 | 200 |
| 2 1/2″ | 65 mm | 206 | 94 | 63.5 | 255 |
| 3″ | 80 mm | 222 | 107 | 75 | 255 |
| 4″ | 100 mm | 273 | 134 | 100 | 350 |
| ALL DIMENSIONS ARE IN ± 2 MM | |||||
